Ruijia Wire ropes weighing elevator overload sensor 5000kg Elevator Parts Alloy steel
VOICE OF GALOCE ELEVATOR LOAD CELLS
A variety of weighing sensors from Galoce are widely used in straight elevators, realizing high-precision weighing and effectively ensuring the safe operation of straight elevators.

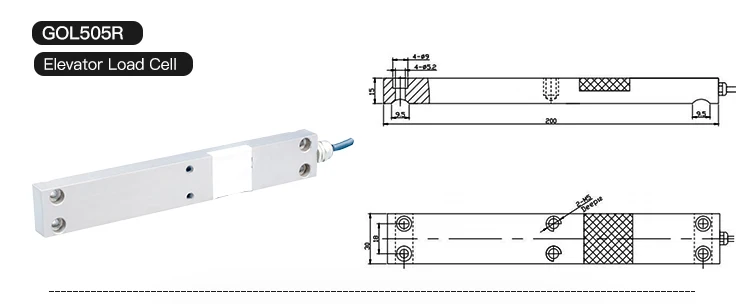

Wire rope sensor GOL505R: The sensor bracket can be clamped on the wire rope to realize the acquisition of all weight data such as the total weight of the elevator cabin, the load of the elevator, and the tension difference of the wire rope, and there is no need to disassemble the wire rope when installing and removing the sensor, and the installation and use are very simple . .

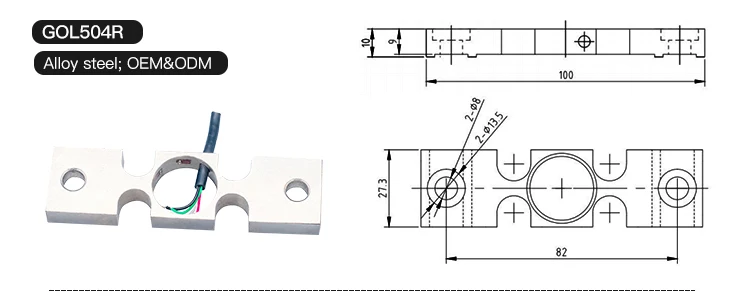

Elevator Cabin UNDER-CAB load sensor GOL504R: The weighing sensor can be installed on the elevator sensor frame. When the weight in the elevator changes, the micro-variation range of the car frame will also change accordingly. The accuracy can reach 0.2%. The installation of the sensor is very simple, just fix it with two screws. .
Elevator Cabin UNDER-CAB load sensor GOL500R: need to install four pieces at the four corners of the floor, it has very high measurement accuracy
HOT SALE ELEVATOR LOAD CELLS
| (GOL500R) Capacity: | 800kg | Creep (%F.S) | 0.02 |
| Comprehensive error(%F.S) | ±0.05 | Input resistance (Ω) | 1000±10 |
| Rated output (mV/ V) | 2.0±0.05 | Output resistance (Ω) | 1000±10 |
| Excitation voltage (V) | 6～12VDC | Cable length | Φ5mm×1.4m |
| (GOL501R) Capacity | 800kg | Creep (%F.S) | 0.02 |
| Comprehensive error(%F.S) | ±0.05 | Input resistance (Ω) | 1000±10 |
| Rated output (mV/ V) | 2.0±0.05 | Output resistance (Ω) | 1000±10 |
| Excitation voltage (V) | 6～12VDC | Cable length | Φ5mm×1.4m |

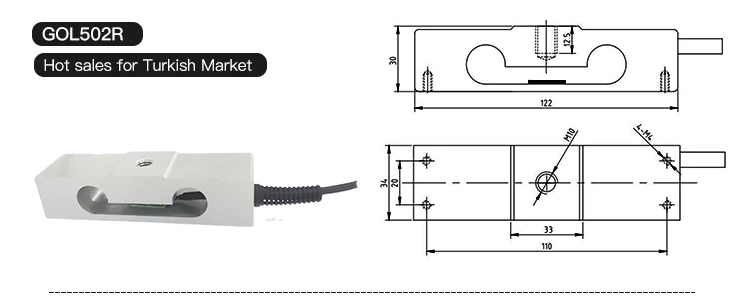

| (GOL502R) Capacity: | 1000kg | Creep (%F.S) | 0.02 |
| Comprehensive error(%F.S) | ±0.05 | Input resistance (Ω) | 1000±10Ω |
| Rated output (mV/ V) | 2.0±0.05 | Output resistance (Ω) | 1000±10Ω |
| Excitation voltage (V) | 6～12VDC | Cable length | Φ5mm×1.4m |
| (GOL504R) Capacity: | 60kg | Creep (%F.S) | 0.02 |
| Comprehensive error(%F.S) | ±0.05 | Input resistance (Ω) | 350±10Ω |
| Rated output (mV/ V) | 2.0±0.2 | Output resistance (Ω) | 350±10Ω |
| Excitation voltage (V) | 6～12VDC | Cable length | Φ4mm×2.5m |
| (GOL505R) Capacity: | 400kg | Creep (%F.S) | 0.02 |
| Comprehensive error(%F.S) | ±0.05 | Input resistance (Ω) | 375±10Ω |
| Rated output (mV/ V) | 2.0±0.2 | Output resistance (Ω) | 350±10Ω |
| Excitation voltage (V) | 6～12VDC | Cable length | Φ5mm×1.4m |
Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.
Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.
At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.
Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.
With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!
FAQ
Q: What are the applications of single point load cell/parallel beam load cell?
A: Platform scale, package scale, animal scale, sorting machine, beehive scale, etc.
Q:What is the raw material?
A: Aluminum alloy
Q: What is the accuracy/precision?
A: C2 0.03% and C3 0.02%
Q: What is the wire meaning?
A: 5 wires (Red: E+, Black: E-, Green: S+, White: S-, Other color: ground)
Q: How to install?
A: One side are fixed and the other side are forced.
Q: What is the load range for single point load cell?
A: 0.1-1000KG
