Retail scale bench scale Medical baby scale Flat Planar Beam weight sensor Load Cell 30kg 150kg 300kg

Name: Retail scale bench scale Medical baby scale Flat Planar Beam weight sensor Load Cell 30kg 150kg 300kg
Brand: Ruijia
Price: 4 USD

Quality Retail scale bench scale Medical baby scale Flat Planar Beam weight sensor Load Cell 30kg 150kg 300kg for sale

Brand Name : Ruijia

Model Number : RJ-6502

Certification : ISO9000

Place of Origin : China

MOQ : moq: 1pc

Price : $4-6

Delivery Time : One week

Packaging Details : carton box

Accuracy : ±0.05

Ultimate Overload : 150%

Safe Overload : 120%

Sensitivity : 1.5±0.2 MV/V

Protection : IP65

Insulation Resistance : ≥5000 MΩ（50VDC）

Linearity : 0.2 %FS

Temperature Effect on Zero : ≤0.02 %FS/10℃

Contact Now

What is 6502 Planar Beam Load Cell?

6501 planar beam load cell range is designed for applications where a low profile solution is needed. Typically, our planar beam load cells would be used in sets of three or four per scale in applications such as retail scales, medical scales or any weighing environment where space is a limiting factor. For optimum performance, use Ruijia load mounts and high precision measuring electronics with these load cells.

What is 6502 load cell FEATRUES?

* Anodized aluminum alloy construction

* Ultra-low profile

* Wide range of capacities

* Can be used as single or multiple load cell structured platform scales

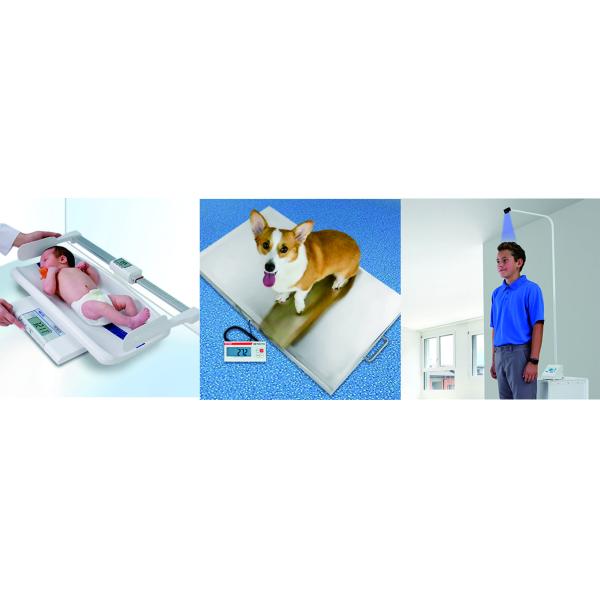

* Widely used for low profile infant and adult medical scales, low profile platform scales, personal scales,

airport baggage scales, postal scales , medical equipment, test & measurement applications

Retail scale bench scale Medical baby scale Flat Planar Beam weight sensor Load Cell 30kg 150kg 300kg

Capacity	Kg	5/10/25
Sensitivity	mV/V	1.5±0.2
Sensitivity	%FS	0.05
Creep(5min)	%FS	0.02
Input Resistance	Ω	395±20
Output Resistance	Ω	350±5
Insulation Resistance	M Ω	≥5000(100VDC)
Zero Balance	%FS	±1
Temperature Effects on Span	%FS/10℃	0.05
Temperature Effect on Zero	%FS/10℃	0.05
Rated Temperature Range	℃	-10～+60
Operating Temperature Range	℃	-20～+80
Proposed Excitation Voltage	V	6～12
Allowed Excitation Voltage	V	3～15
Safe Overload	%FS	120
Ultimate Overload	%FS	150
Protection		IP65
Cable specification	mm	Φ1Electronic wiring
Cable length	m	0.4
Material		Aluminum Alloy

Retail scale bench scale Medical baby scale Flat Planar Beam weight sensor Load Cell 30kg 150kg 300kg

A load cell is one of the most used weight / force measurement devices. Load cells can be found almost anywhere, from the retail market to the hospital and defence. The use of a load cell is not restricted to a single industry or application.

Ruijia has 18 years of experience in load cell Manufacturing for Aerospace, Neonatal,Health Care, Food, Medical & Pharmaceutical, Military, Automobile, Rail & Road WeighBridge, Oil & Gas, Marine, Textile & Paper, Mines & Petrochemical, Aviation, Poultry Equipment, Steel & Cement Industries & Chemical Industrial Applications.
