Product Description:
Strain Gauge Load Cell is a low profile load cell, which is widely used for accurate weighing sensing applications. It comes with a 0.6m cable, so it can be easily installed in tight places. Moreover, it features a 385Ω input resistance, a ±2% zero balance, and a wide temperature range from -10℃ to 40℃, making it a reliable and accurate weighing sensor. It also meets the IP65 protection class, making it suitable for harsh environmental conditions. With Strain Gauge Load Cell, you can ensure precise and reliable weighing measurement results in any situation.
Features:
- Product Name: Strain Gauge Load Cell
- Compensated Temperature: -10℃-40℃
- Insulation Resistance: ≥5000MΩ
- Input Resistance: 385Ω
- Sensitivity: 1.0±0.2 / 1.5±0.2
- Zero Balance: ±2%
- Low Profile: Ideal for applications such as baby scales
Applications:
- The Ruijia RJ-6502 strain gauge load cell is an accurate weighing sensor that provides reliable measurement results in a wide range of applications.
- It can measure from 7 kg to 300 kg with ultimate overload of 200%, and features a compensated temperature range of -10℃-40℃ and a creep (5min) of 0.02%FS.
- The load cell has a high sensitivity of 1.0±0.2 or 1.5±0.2, making it an ideal choice for precise weighing measurement.
- It is widely used in various industries, such as automotive, aerospace, chemical and pharmaceutical, and is suitable for a variety of applications, including weight control, force measurement, load testing, and feedback control.
- The Ruijia strain gauge load cell is designed to provide reliable, accurate, and repeatable measurements for a wide range of applications.

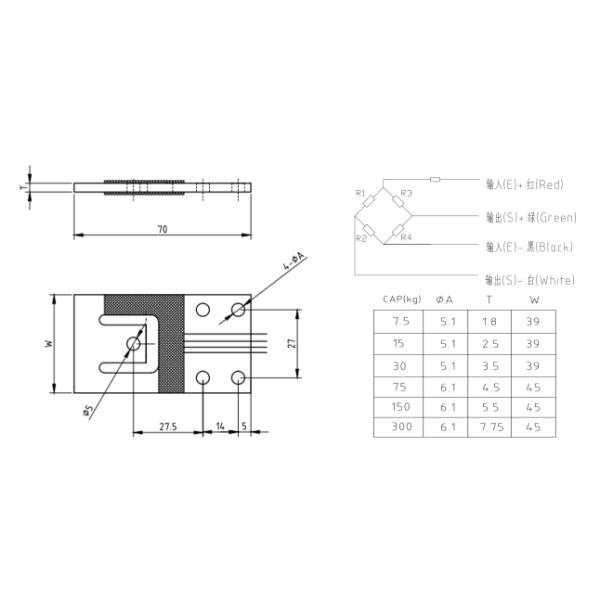

Dimensions:
Parameters:
| Capacity | Kg | 7.5 | 15 | 30 | 75 | 150 | 300 |
| Sensitivity | mV/V | 1.0±0.2 | 1.5±0.2 |
| Sensitivity | %FS | 0.05 |
| Creep(5min) | %FS | 0.02 |
| Linearity Error | %FS | 0.05 |
| Hysteresis Error | %FS | 0.02 |
| Repeatability Error | %FS | 0.02 |
| Input Resistance | Ω | 1090±30 |
| Output Resistance | Ω | 1000±10 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ±2 |
| Temperature Effects on Span | %FS/10℃ | 0.05 |
| Temperature Effect on Zero | %FS/10℃ | 0.05 |
| Rated Temperature Range | ℃ | -10～+40 |
| Operating Temperature Range | ℃ | -20～+60 |
| Proposed Excitation Voltage | V | 6～12 |
| Allowed Excitation Voltage | V | 3～15 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | | IP65 |
| Cable specification | mm | Φ3.8UL & Φ1Electronic wiring |
| Cable length | m | 0.6 |
| Material | Aluminum Alloy |
FAQ:
- Q: What is the brand name of the Strain Gauge Load Cell?
- A: The brand name of the Strain Gauge Load Cell is Ruijia.
- Q: What is the model number of the Strain Gauge Load Cell?
- A: The model number of the Strain Gauge Load Cell is RJ-6502.
- Q: Where is the Strain Gauge Load Cell manufactured?
- A: The Strain Gauge Load Cell is manufactured in China.
- Q: What is the accuracy of the Strain Gauge Load Cell?
- A: The accuracy of the Strain Gauge Load Cell is 0.1%.
- Q: What is the maximum capacity of the Strain Gauge Load Cell?
- A: The maximum capacity of the Strain Gauge Load Cell is 200kg.
